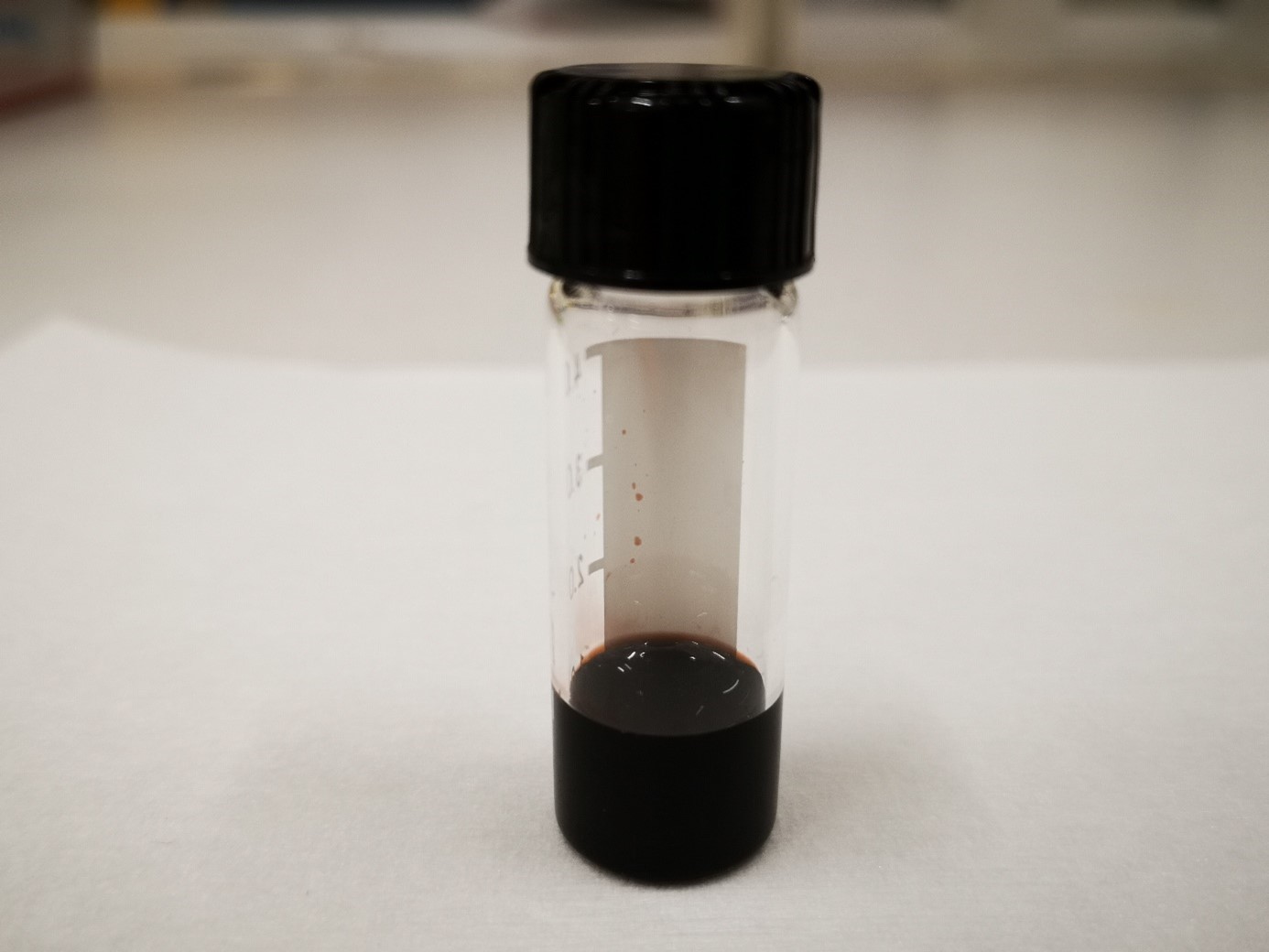

HTM ink (Doped Spiro-OMeTAD)
LX-MG1A is an advanced doped spiro-OMeTAD solution suitable for an extensive range of printed electronics markets. It is primarily suited for hole transport in perovskite solar cells. The major solvent is CB and doping concentration is 5 Mol% with salt modification. This solution can achieve more than 25% PCE based on FAPbI3 active layer and also facilitates application via spin coating, doctor blading, and slot die processing to an extensive range of perovskite solar cells.
Hole transport material featuring:
No post-treatment needed
Compatible with metal electrode/metal oxides
Compatible with all kinds of Perovskite compositions
Pakage size:
1 mL, 5 mL and 10 mL
HTM ink (Doped Spiro-OMeTAD)
LX-MG1B is an advanced doped spiro-OMeTAD solution suitable for an extensive range of printed electronics markets. It is primarily suited for hole transport in perovskite solar cells. The major solvent is CB and doping concentration is 5 Mol% with higher salt modification. The higher salt concentration modification can extend the efficient hole extraction ability to deep HOMO/VB absorbers. This solution facilitates application via spin coating, doctor blading, and slot die processing to an extensive range of perovskite solar cells.
Hole transport material featuring:
No post-treatment needed
Compatible with metal electrode/metal oxides
Compatible with all kinds of Perovskite compositions
Pakage size:
1 mL, 5 mL and 10 mL

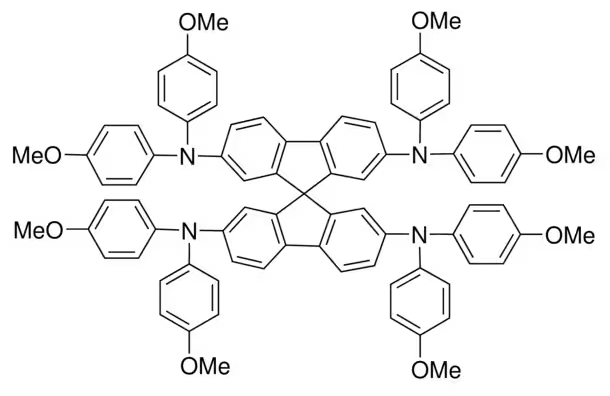

LX-Spiro-OMeTAD is spiro-OMeTAD powders with ultra-high purity.
Hole transport host material featuring:
High purity
High solubility in CB
High quality after film deposition
Pakage size:
1 g, 5 g and 10 g
LX-RG1 is spiro-OMeTAD divalent radical with ultra-high purity.
Hole transport dopant material featuring:
High purity
High solubility
No precipitation after film deposition
Two type products: Microcrystal powders (99.9%) and Single crystals (99.99%)
Pakage size:
100 mg, 200 mg, 500 mg and 1 g

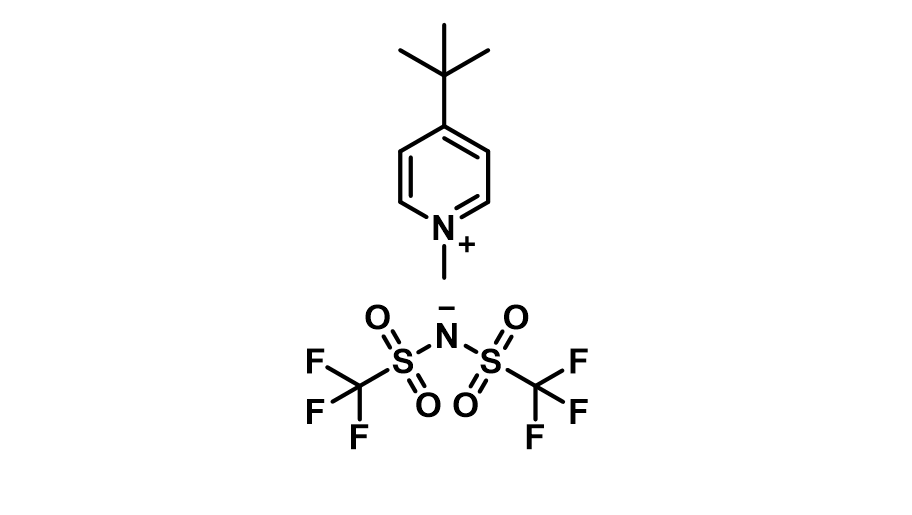

LX-OS1 is
organic salt with ultra-high purity, which can modulate the doping efficiency.
Hole transport modulation material featuring:
High purity
High solubility
No precipitation after film deposition
Pakage size:
1 g, 5 g and 10 g
